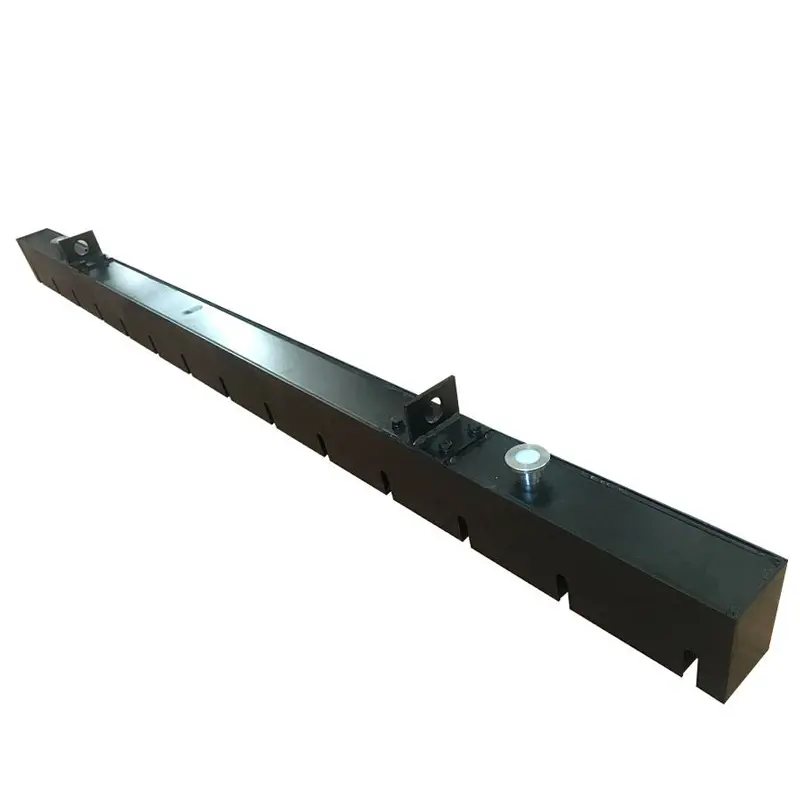

U60 Magnetic Formwork System For Precast concrete Production
Parameters of U60 Magnetic Formwork Syste:
- Material: U-shaped steel/stainless steel/aluminum profile with built-in automatic permanent magnet system
- Finish: U-channel natural or brushed finish
- Width: 60mm (without chamfer)
- Height: 50mm, 60mm, 70mm, 80mm, 85mm, etc., can be customized according to needs
- Length: 500mm, 750mm, 900mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm, 3500mm, etc., can be customized according to requirements
- Magnetic force: e.g. 2 x 450KG magnets or 3 x 900KG magnets, depending on length and type.
advantages
In precast concrete projects, in addition to improving construction efficiency and ensuring construction quality, the U60 Magnetic Formwork System has the following potential application advantages:
1. Flexibility: U-shaped formwork can be machined to different lengths, widths and heights, with or without side chamfers.
2. wide range of applications: suitable for prefabricated ceilings, beams, mezzanines and double wall panels.
3. High retention and resistance: thanks to the integration of powerful and proven magnet technology.
4. Easy handling: activation of the magnets by simple foot pedal or robotic operation.
5. Direct force closure: direct force closure between the U-channel template, the magnet and the steel casting table.
6. Easy maintenance: easy removal by switchable magnets.
7. Cost Savings: Reduced use of plywood, reduced mold making and dismantling time, ease of cleaning, and improved quality of final precast concrete elements.
8.Adaptability: The system can be used for the production of concrete components such as wall panels, sandwich walls, solid walls and slabs, so it has strong adaptability.
9. Reduced measurement errors: Because the system is a single unit and more integrated, measurement errors are less likely to occur, thereby increasing the consistency of the final product.
10. Easy to clean and maintain: the tensioning elements are built into the steel shell and are in a safe position, so the formwork system is not susceptible to the intrusion of dirt.
The U60 magnetic formwork system is loved by users for its flexibility, high efficiency and versatility. It helps to increase productivity, reduce costs and improve the quality of the final product.
