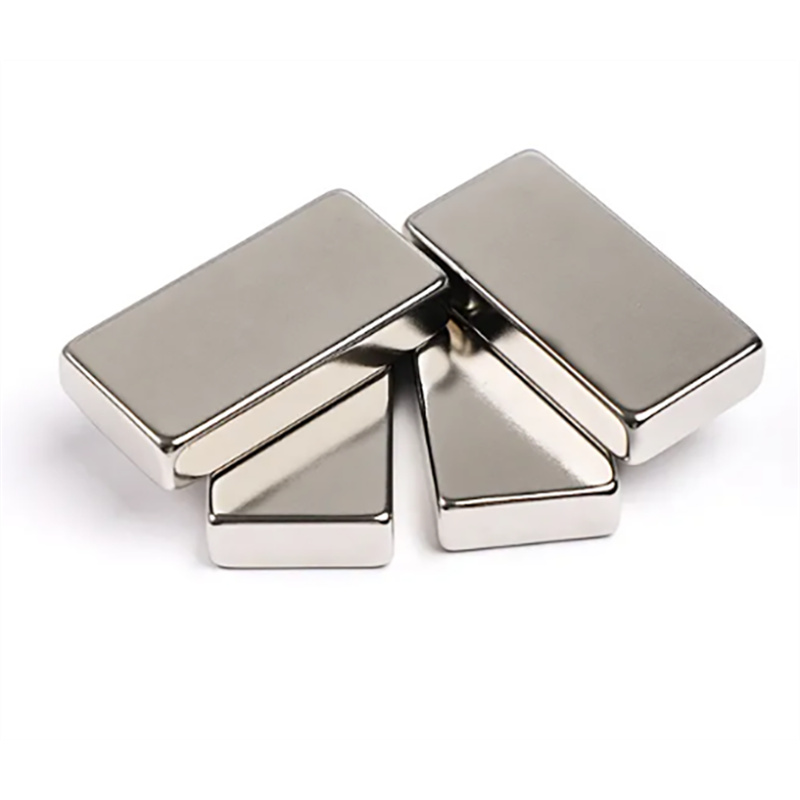

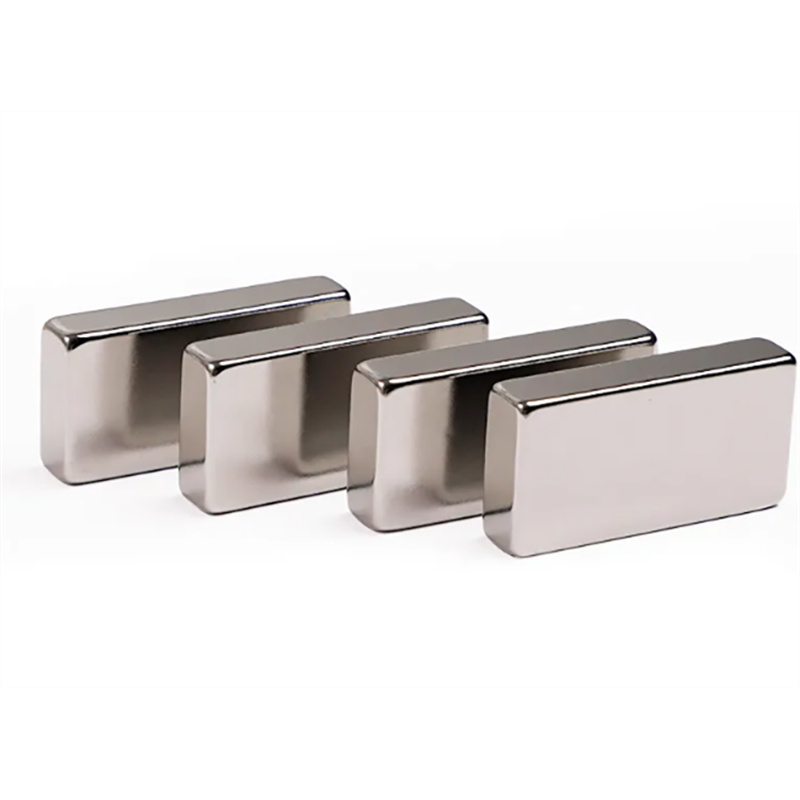

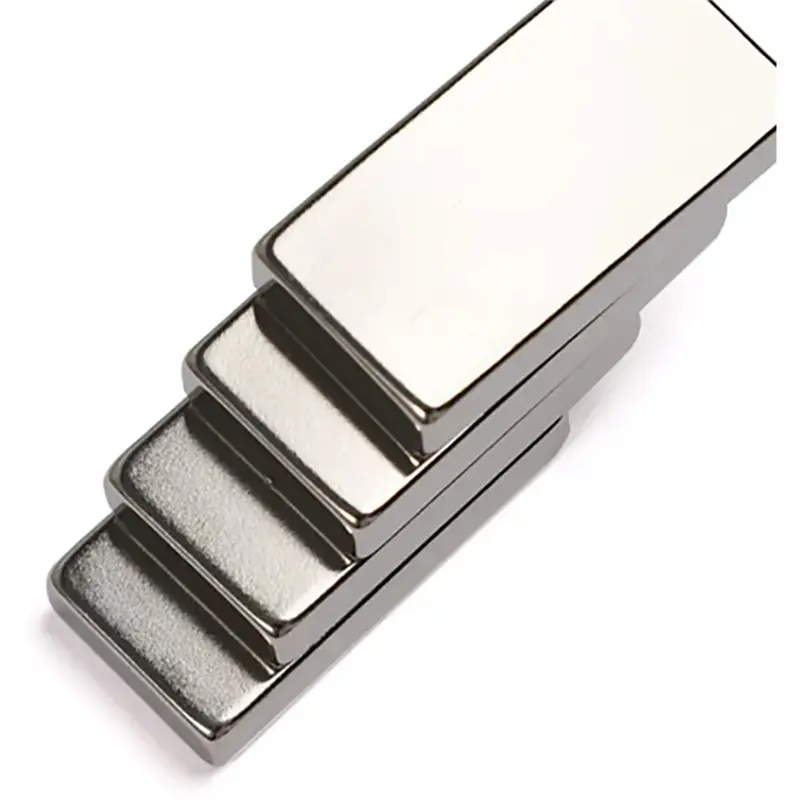

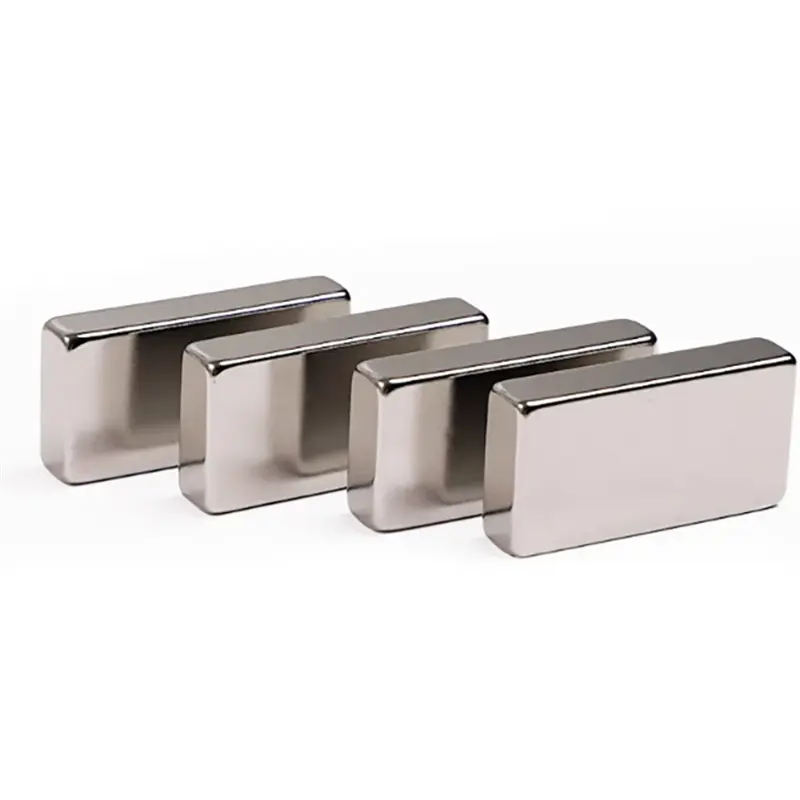

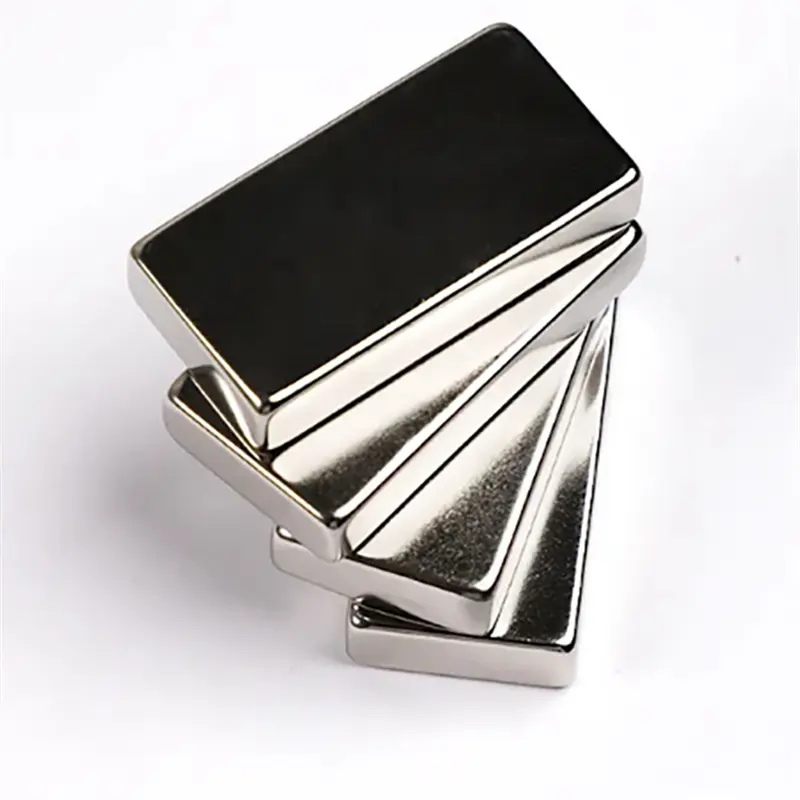

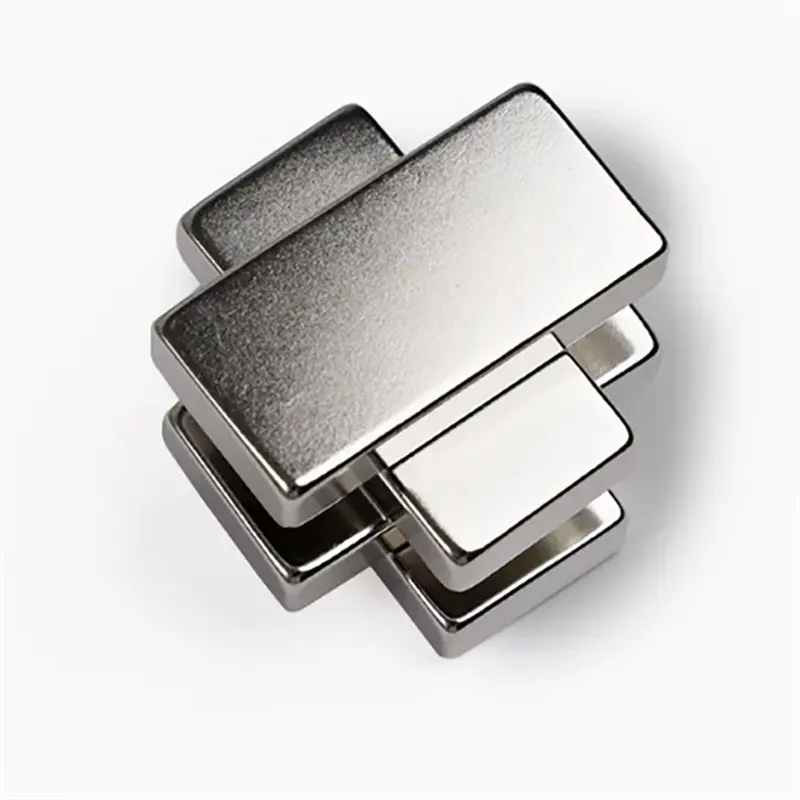

Super Strong Neodymium N45 Magnet Bar Block (60x10x5 mm)
Material Description
Coating treatments form a protective layer on NdFeB surfaces, significantly reducing wear, delamination, and oxidation. This improves the material’s stability and extends its operational lifespan. Additionally, coatings enhance thermal resistance, enabling NdFeB magnets to function reliably in high-temperature environments (e.g., up to 120°C for coated N45 magnets vs. 80°C for uncoated).
Common Coating Types & Benefits
Copper Plating
1.Provides excellent oxidation resistance and electrical conductivity.
2.Thickness: Typically ≥10μm for optimal protection.
Nickel Plating
1.Offers superior corrosion resistance and gloss finish.
2.Standard thickness: ≥15μm to ensure long-term durability.
Aluminum Plating
1.Combines corrosion resistance, thermal conductivity, and abrasion resistance.
2.Often used in high-temperature or outdoor applications.
Gold Plating
1.Enhances aesthetics with a luxurious appearance.
2.Limitations: High cost and lower hardness (prone to scratches).
Composite Coatings
1.Popular combinations: Nickel-Copper-Nickel (Ni-Cu-Ni) or Zinc-Nickel.
2.Advantages: Combines corrosion resistance (Ni) with electrical conductivity (Cu).
Technical Specifications
Parameter |
Value |
Unit |
Grade |
N45 |
- |
Dimensions |
60 × 10 × 5 |
mm |
Remanence (Br) |
1.45–1.48 |
T |
Coercivity (Hc) |
≥1160 |
kA/m |
Maximum Energy Product |
335–367 |
kJ/m³ |
Operating Temperature |
-40°C to +120°C |
Safety & Usage Guidelines
●Caution: Strong magnetic force may cause finger injuries or damage electronic devices.
●Handling: Use protective gloves and avoid sudden contact with ferromagnetic materials.
Applications
●Motors, generators, and sensors
●Industrial automation and machinery
●Aerospace and automotive components
●Magnetic separation systems
Conclusion
Coated NdFeB magnets offer tailored solutions for diverse industrial needs. By selecting appropriate coatings (e.g., Ni-Cu-Ni for corrosion resistance or Al for thermal stability), manufacturers can maximize performance, ensuring reliability in challenging environments. Proper coating not only extends service life but also supports technological advancements across sectors.
