Semi-spherical Steel Magnetic Recess Former

The Semi-spherical Steel Magnetic Recess Former is a magnetic assembly for securing Dog Bone Spherical Head lifting anchors in precast concrete. Made of Q235 steel with neodymium magnets, it has various parameters. It avoids mould damage, combines functions, is reusable, corrosion-resistant, customizable, and used in multiple systems and concrete product production.

product details

The Semi-spherical Steel Magnetic Recess Former is a magnetic assembly used to secure Dog Bone Spherical Head lifting anchor in the production of precast concrete elements. It is typically made of a high quality Q235 steel that is integrated with a core of high performance neodymium magnets to provide a strong magnetic force. The design helps to locate the Spherical Head Lifting Anchors in the steel mold, and when the concrete is poured and fully cured, it can be easily removed.

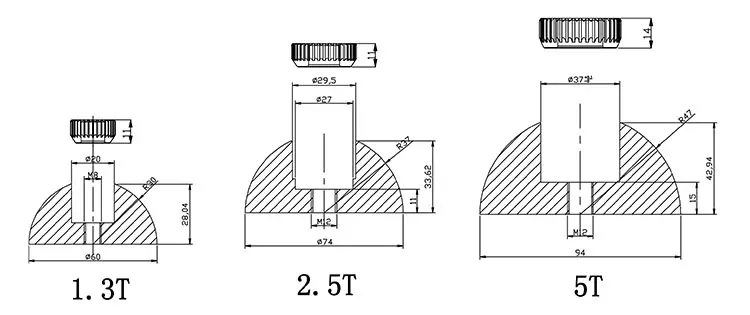

1.3T,2.5T, 5T Steel Recess Former Magnet For Anchor Fixing

Regular product parameters include:

- Tensile capacity of the magnet, ranging from 1.3 tons to 10.0 tons.

- Diameter size, depending on the size of the anchorage, there are different specifications, e.g. D60mm corresponds to 1.3 tons of anchorage, D74mm corresponds to 2.5 tons, D94mm corresponds to 5.0 tons and D118mm corresponds to 10.0 tons.

- Thread sizes, such as M8, M10, or M12, are used to secure the Spherical Head Lifting Anchors.

The function of Semi-spherical Steel Magnetic Recess Former is to avoid drilling holes in the molds, reduce damage to the molds and prolong the life of the molds by magnetically fixing the Spherical Head Lifting anchors in the precast concrete production.

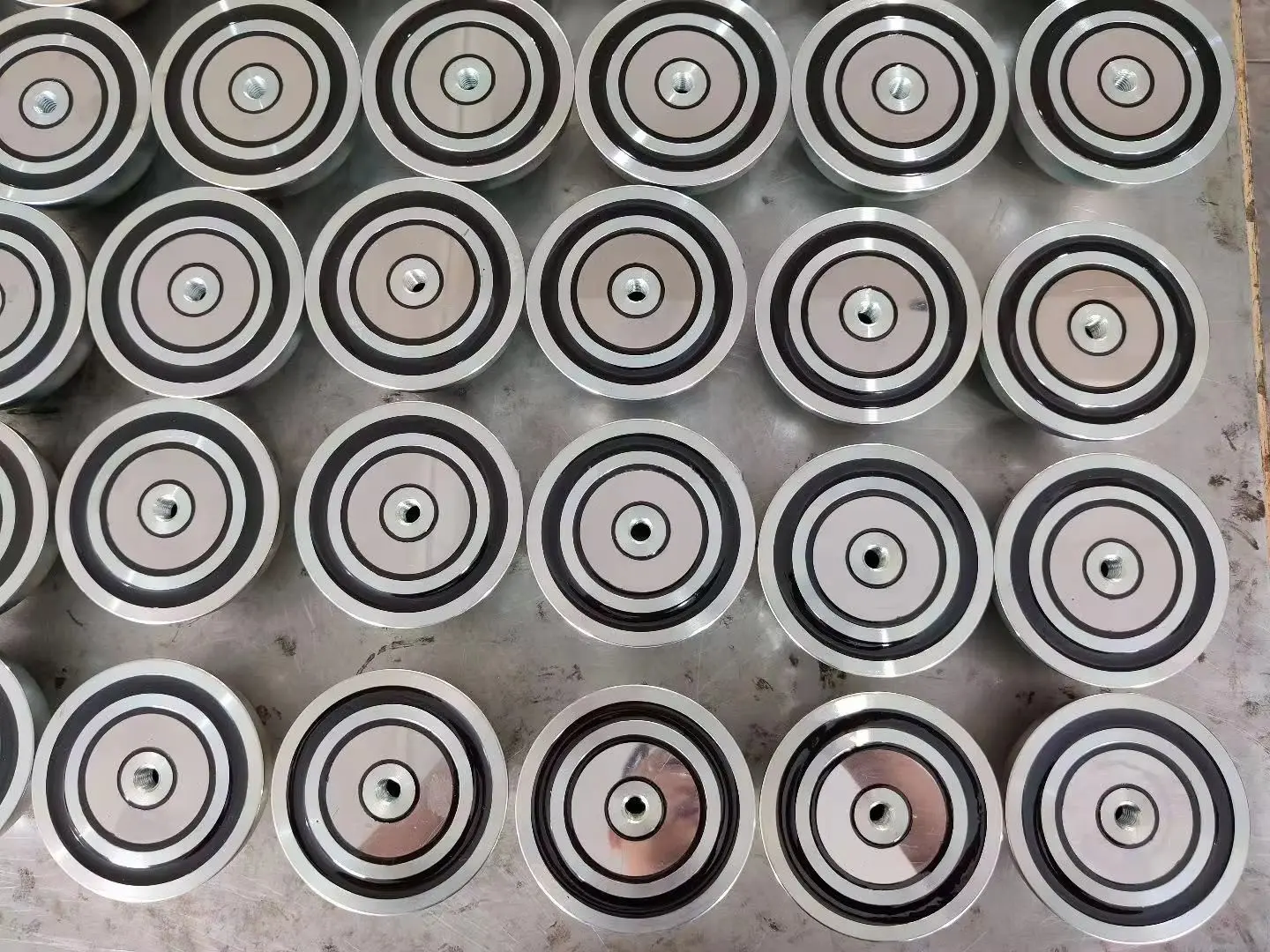

QCM Magnet's Magnetic Recess Former has high yield and good quality

Its features and benefits include:

- Combines the functions of a groove former and a magnet with internal threads for easy magnet release.

- Long service life due to the robust design of the steel housing.

- Environmentally friendly and cost effective through reusability.

- Neodymium magnet surface can be zinc-plated, copper-plated, nickel-copper-nickel or custom coated to resist corrosion.

- Uses High quality neodymium magnets to ensure quality and design advantages over rubber groove formers.

- Customized shapes, sizes, operating temperatures, materials, forces or anchor sizes are available upon request.

This magnetic notch former is widely used in pallet circulation systems, steel and tilting tables, and in the production of concrete products such as walls, beams, piles, and floor slabs.
