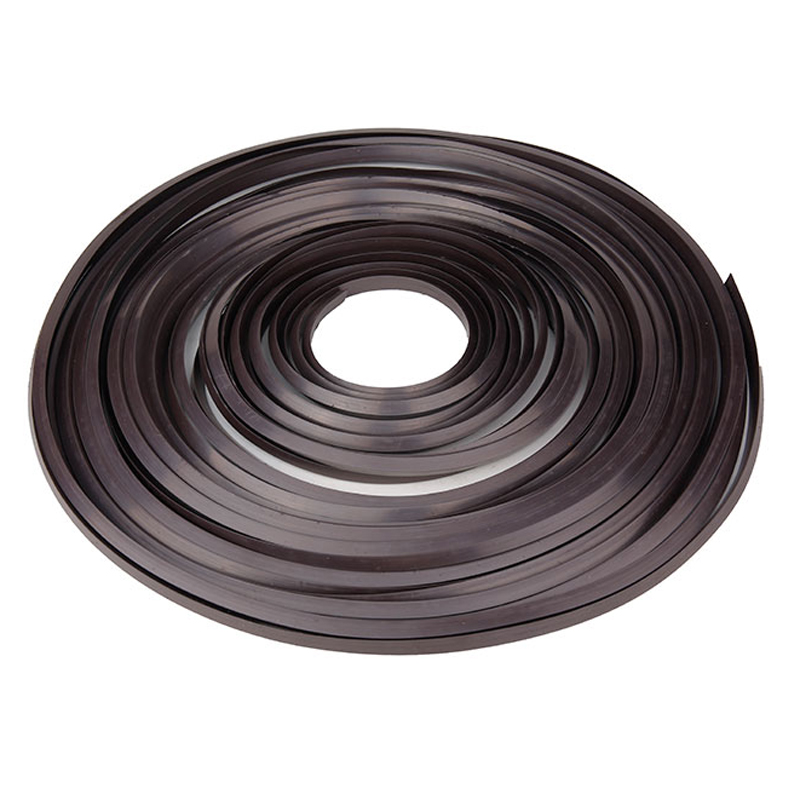

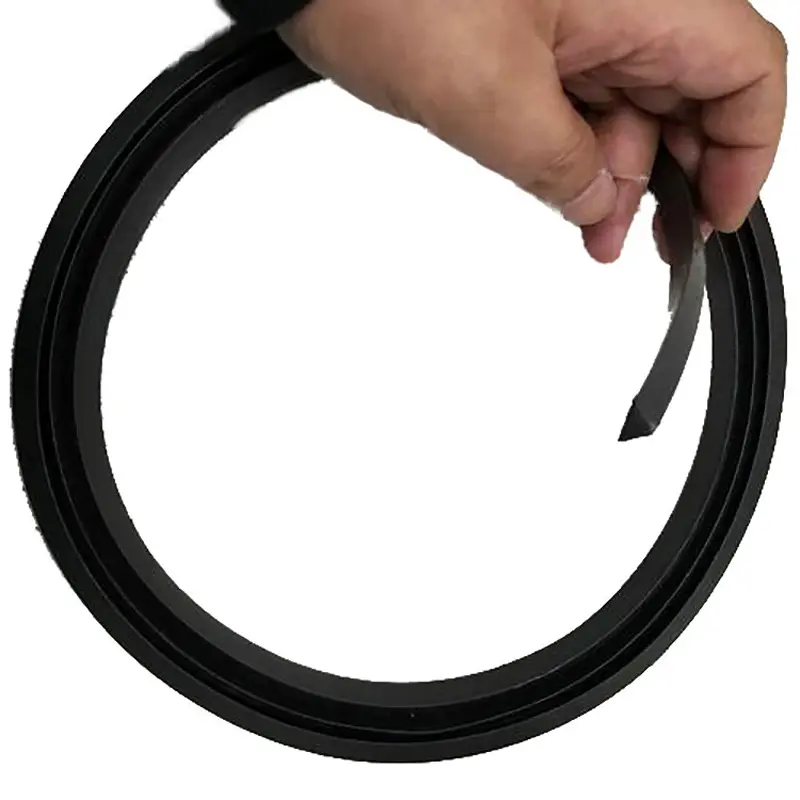

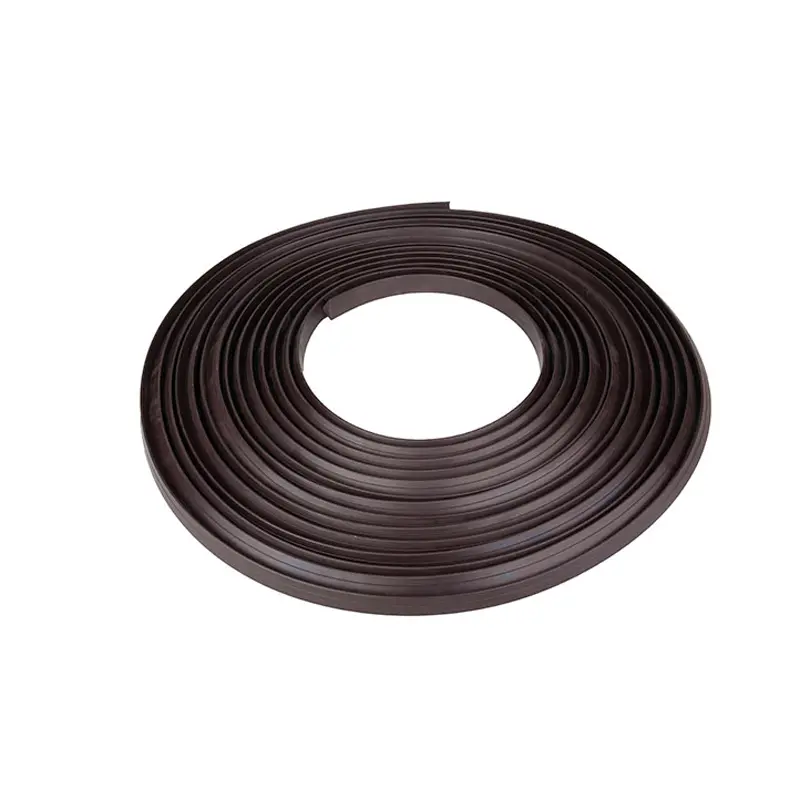

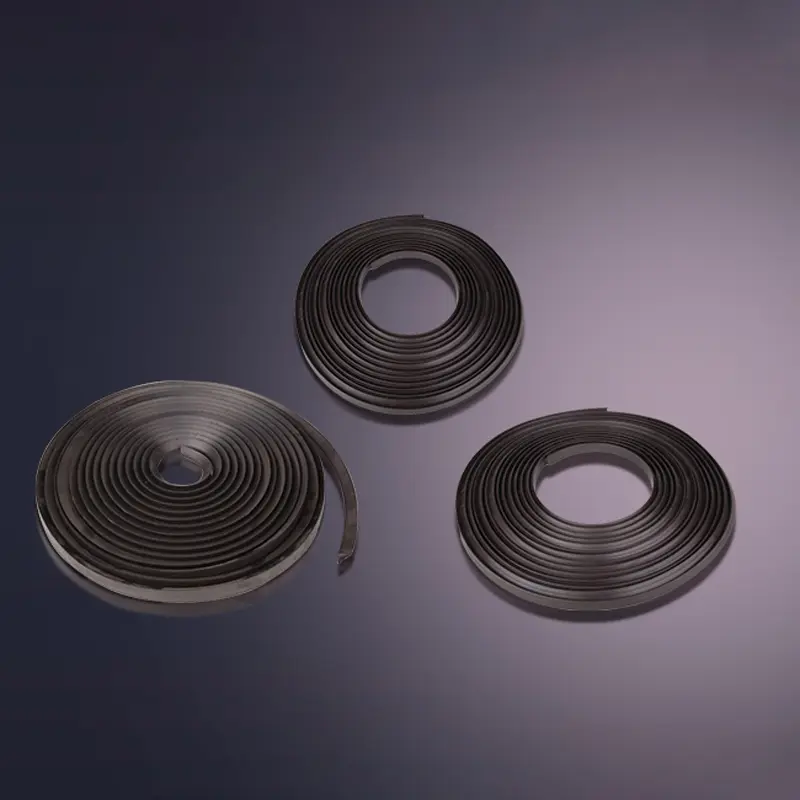

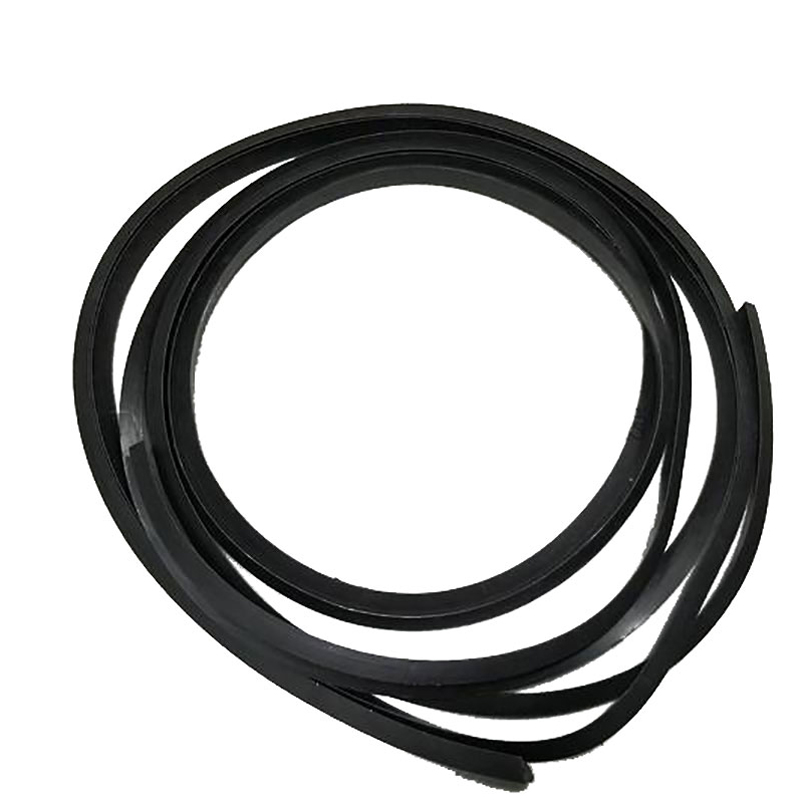

Rubber Magnetic Chamfer For Precast Concrete
Rubber Magnetic Concrete Chamfer a magnetic fixing used in precast concrete element forms, mainly to generate chamfers during the production process. Made of rubber and magnets, it is flexible and adapts to irregular surfaces.Rubber Concrete Chamfer is used where flexibility and durability are required, especially for irregularly shaped or finely finished concrete surfaces. This chamfering strip is lightweight and easy to bend, making it easy to position for use in any position of the mold with great convenience.

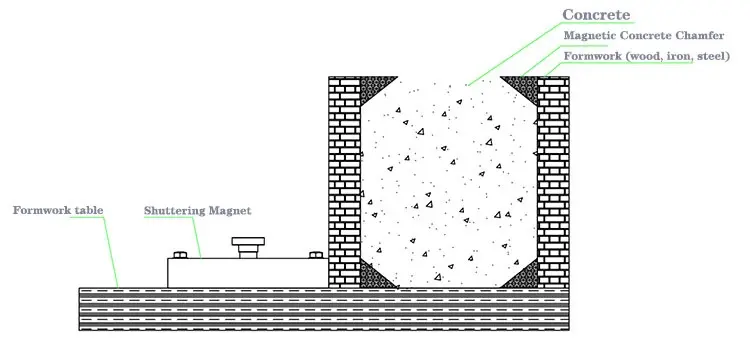

Magnetic Concrete Chamfer Working Principle Diagram
Rubber magnetic chamfering strip is mainly used in the production process of precast concrete components where chamfers need to be generated when chamferless edge molds are used. It can be magnetically fixed to the mold to conveniently generate the desired edges at any position of the mold, thus improving production efficiency and product quality.
The features of this chamfer strip include:
1. light weight: rubber magnetic material makes the chamfer strip light weight, easy to operate and install.
2. Elasticity: it has a certain degree of bending, which can be adapted to different shapes of molds.
3. Magnetic fixing: it can be easily fixed on the mold by using magnetism, no other fixing tools are needed.
4. Customizable: according to different production requirements, different sizes of chamfering strips can be customized to meet diversified production requirements.
In addition, the manufacturing process of rubber magnetic chamfer strips is relatively simple, the delivery time is short, and the price is more economical compared to strong magnets.QCM Magnet provides this product and can customize different sizes of chamfer strips according to customers' needs, including 8x8mm,10x10mm, 15x15mm, 20x20mm and other specifications to adapt to more complex production processes.
