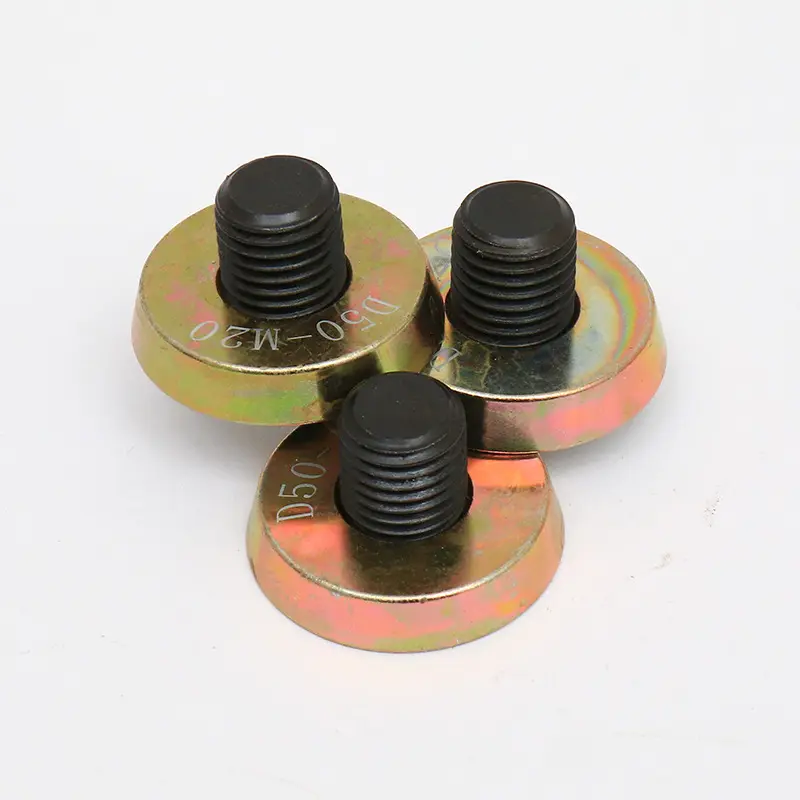

QCM Inserted Socket Fixing Magnets Insert Magnet
Insert magnet is a device that utilizes the magnetic principle to fix and position objects. It consists of a neodymium magnet, a steel housing and a threaded rod. Thanks to the performance of super-strong neodymium magnets, this threaded bushing magnet can fix the socket in the right position.QCM Magnet produces multi-specification, multi-style and multi-absorption threaded fixing neodymium magnets according to customer's requirements for connecting and fixing all kinds of pre-embedded parts, and also equipped with M10, M12, M14, M16, M18, M20 and M24 screws for customer's choice. Other diameters, screws, load capacities and logo laser printing are available upon request.
NdFeB Embeded Socket Fixing Magnet Dimension:
Part No.: QCM-D50
Threaded rod diameter : M10
Overall diameter D1 (mm): 50
Height(mm):8
QCM Insert Magnet Specifications：
 |
||||
|
Model |
D1(mm) |
H2(mm) |
Breakaway |
D3 |
|
D50*8 |
50 |
8 |
60 |
M10M12M14M16 |
|
D54*10 |
54 |
10 |
65 |
M18M20M24 |
|
D64*12 |
64 |
12 |
100 |
M16 |
Below are the applications and features of QCM Insert Magnet:
1. Use in Precast Concrete: Insert Magnets can be used to hold a variety of embedded components such as switches, stake holes, and connecting or lifting sockets in place during the precast concrete production process. These Insert Magnet secure the embedded parts to the mold by means of magnetic attraction force, ensuring that the embedded parts do not slide or move during the production process. For example, the QCM Insert Magnet series is designed for precast concrete and is able to hold embedded parts by magnetic attachment on the mold tray.
2. Fixing of pipes and grouting pipes: Insert magnets are also used to fix corrugated metal pipes and PVC pipes in precast concrete supports. These insert magnets consist of a magnetic base and a smooth rod, A smooth rod facilitates the sleeving of the pipe, while the magnetic base is secured to the mold using magnetic attraction.
3. Fixing of electrical boxes: Insert magnets are also used to fix electrical boxes in the production of precast concrete components. These insert magnets are designed to be inserted to hold the holes of the electrical box during the fabrication of the precast concrete assembly and to ensure that the position of the electrical box in the concrete is accurate.
These insert magnets provide a convenient and efficient fixing solution in a variety of application scenarios.
Application Pictures of Insert Magnets with External Thread:
QCM magnet precast concrete magnets production equipment
QCM magnet shutting magnet box pull force test equipment
Package of Fixing Magnets Insert Magnet
