precast concrete magnetic shuttering box 2100 kg force
product detail

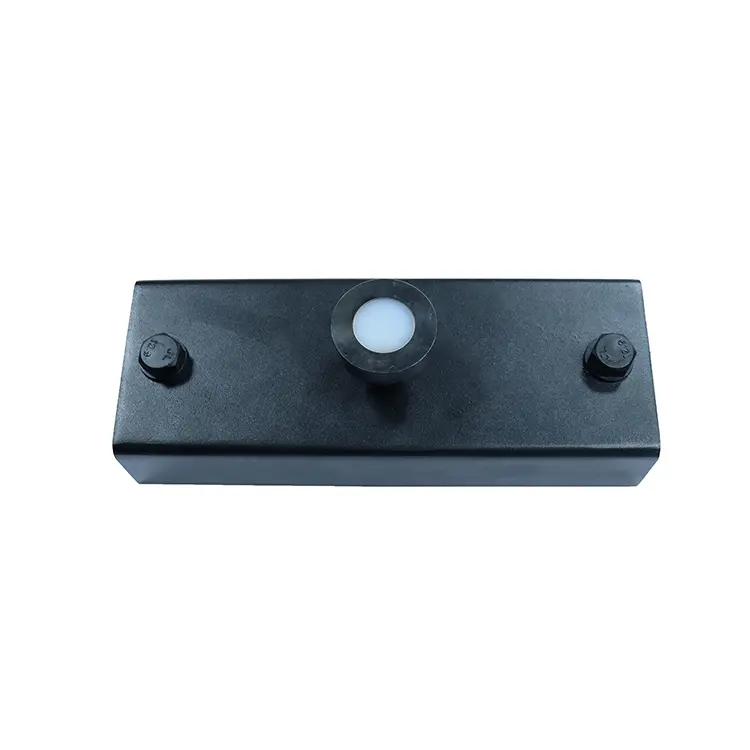

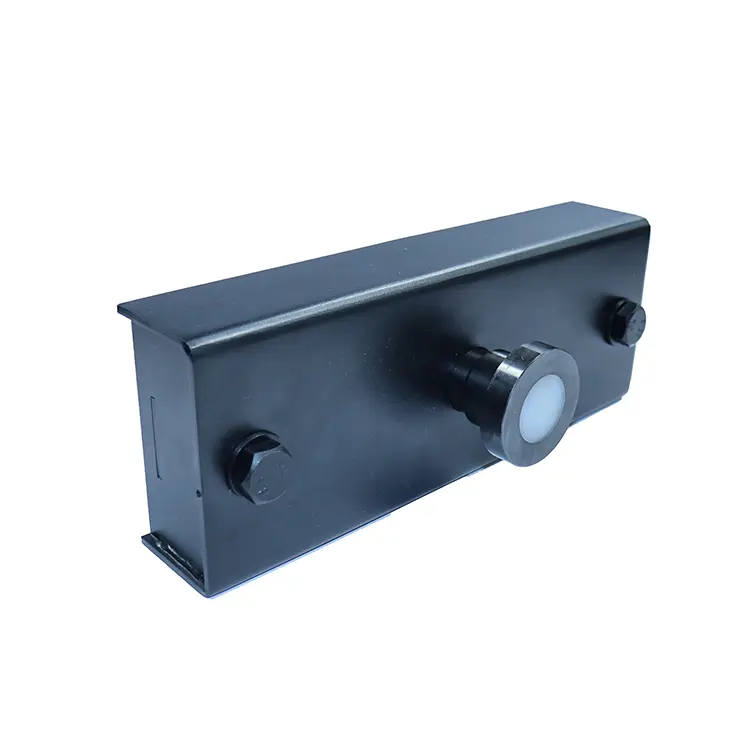

Also called precast concrete magnets or PC fixing magnetic boxes, precast concrete magnetic boxes are consider as very advanced gadgets for use in constructing precast concrete features. They employ powerful neodymium magnets that can sustain a formwork for pouring a concrete slab or wall and during the setting of the concrete.
Key Features

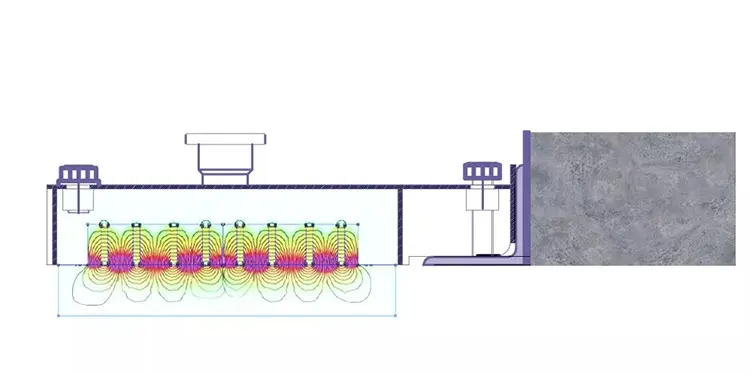

Magnetic Mechanism

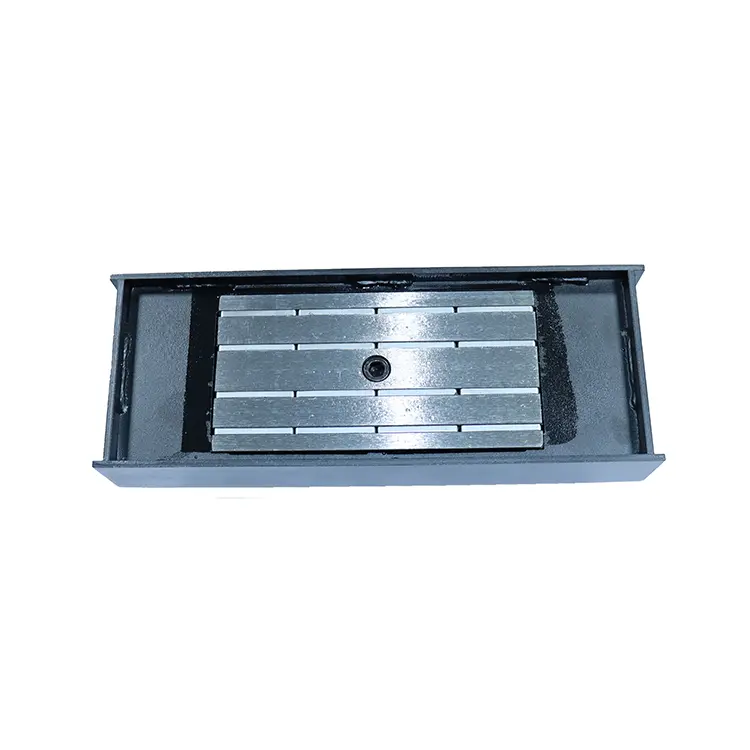

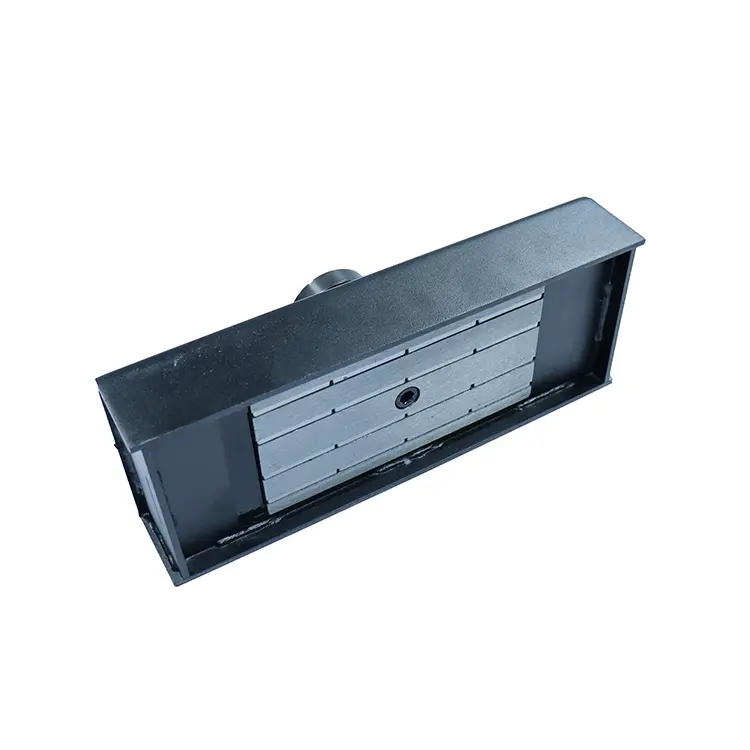

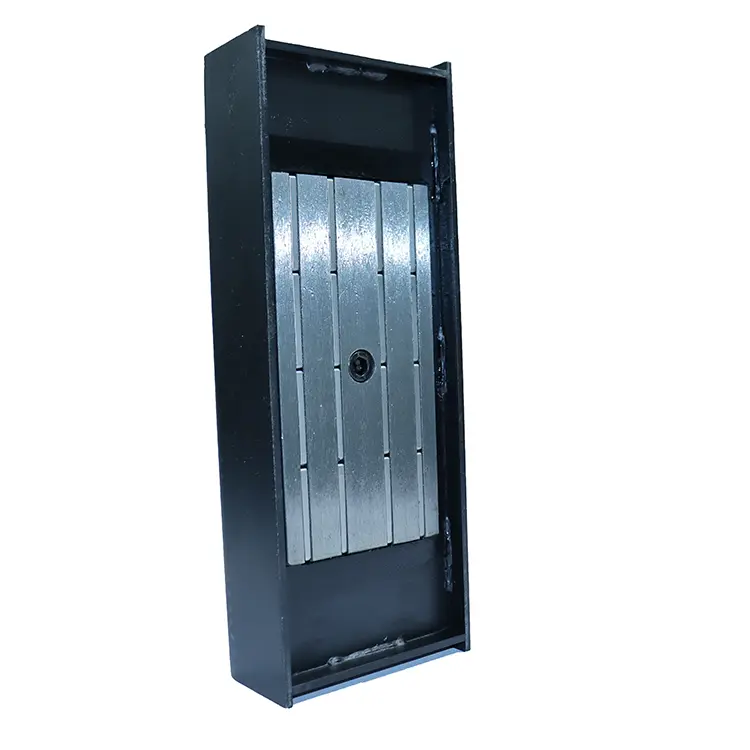

- These boxes typically contain powerful neodymium magnets encased in a protective steel housing. The magnetic force permits formwork assembly to be quickly attached and detached.
Durability and Protection
- The magnets are manufactured to have protective coatings that do not corrode, hence increasing durability under difficult construction conditions.
Ease of Use
- Precast concrete magnetic boxes have a simple on/off mechanism thus enabling workers to control the adhesive force that these devices give. This makes adjusting or moving the formwork more convenient.

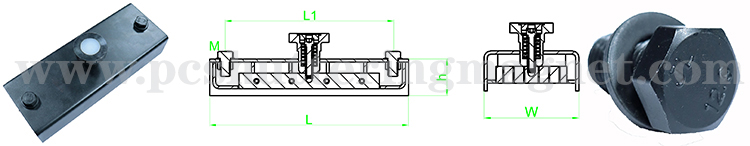

Product Specifications
|
|
||||||
|
Model |
L(mm) |
L1(mm) |
W(mm) |
h(mm) |
M |
Breakaway(kg) |
|
QCM450 |
170 |
135 |
60 |
43 |
M12*30 |
450 |
|
QCM600 |
170 |
142 |
60 |
43 |
M12*30 |
600 |
|
QCM900 |
280 |
244 |
60 |
43 |
M12*30 |
900 |
|
QCM1600 |
290 |
240 |
120 |
60 |
M16*30 |
1600 |
|
QCM1800 |
320 |
270 |
120 |
60 |
M16*30 |
1800 |
|
QCM2100 |
320 |
270 |
120 |
60 |
M16*30 |
2100 |
|
QCM2400 |
320 |
270 |
120 |
60 |
M16*30 |
2400 |
Applications
Precast concrete magnetic boxes are used for numerous tasks in construction:
-Magnetic Boxes for Walls and Columns: The boxes keep the formwork for walls and columns in correct positions, ensuring the quality of walls and columns precast elements are flawless.
-Magnetic Boxes for Modular Assembly: They permit the swift aggregation of modular parts so that they can be quickly put together for rapid building projects.
-Magnetic Boxes for Complex Structures: They allow for usage of novel artistic formworks for novel architecture with minimal framework supports.

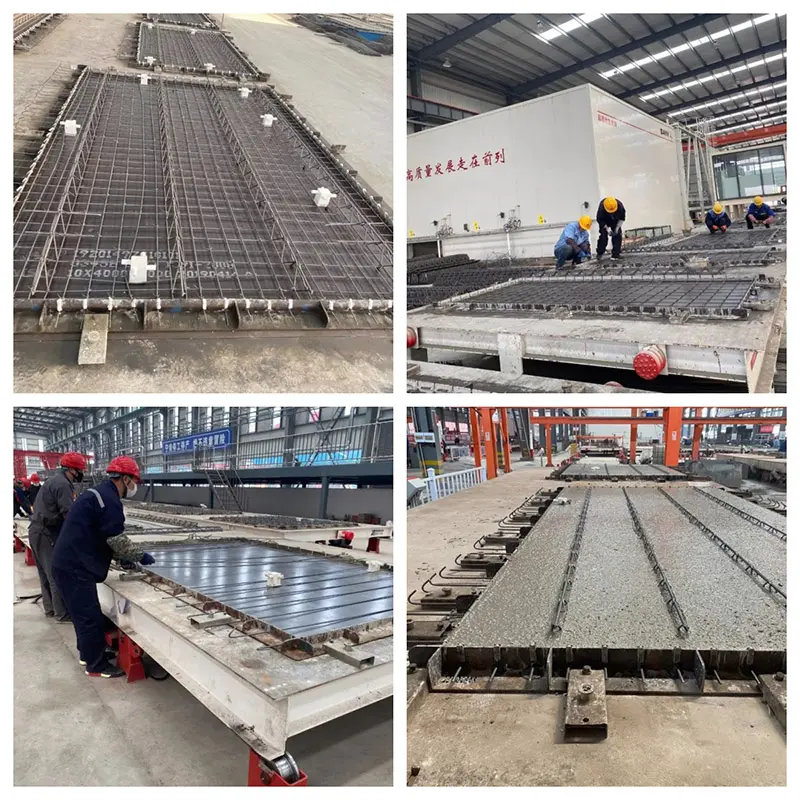

Application of precast concrete magnetic box
Advantages
Outlined below are the advantages provided by precast concrete boxes with magnets:
-Rectified Productivity: With precast concrete magnetic boxes, less time is needed to set up the formwork as compared to traditional methods that are anchored by clamps or screws.
-Financial Benefits: Magnets, by expediting assembly, help save funds that are otherwise expended on manual work and completing the project.
-Increased Safety: A safer job site that reduces the chance of accidents is achieved by the elimination of cumbersome site tools.
In summary, it is possible to complete constructions with high accuracy, speed, and safety by using concrete precast boxes with magnetic sides.
