Precast Concrete Embedded Insert Magnetic Fixing

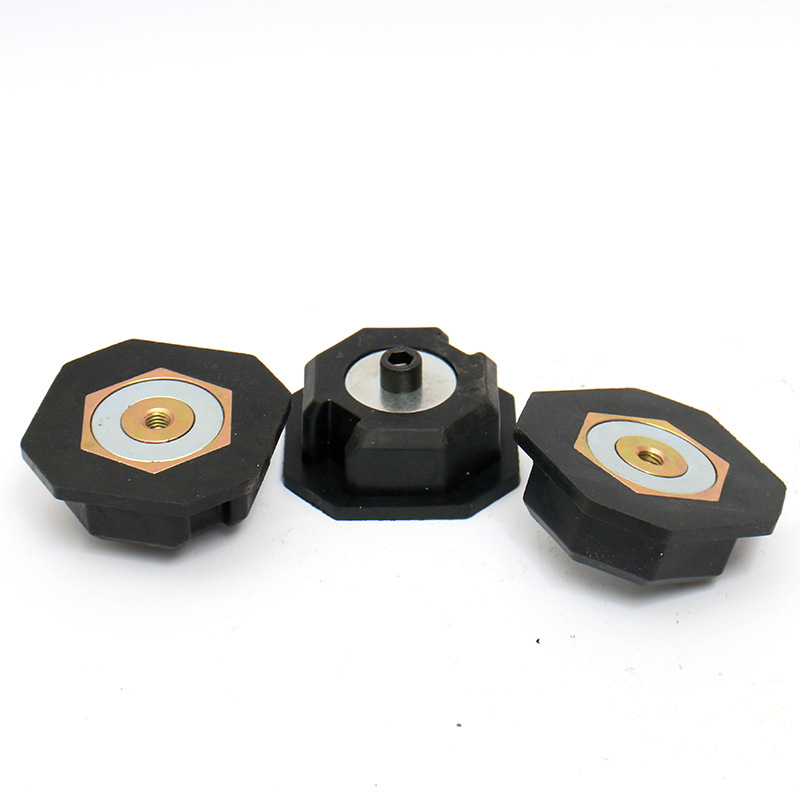

Inserted Magnets are magnetic fixtures specially developed for fixing all kinds of pre-embedded parts, consisting of two parts: magnetic base with screw holes and threaded rods; the magnetic base consists of neodymium magnets, steel shells, and we also produce all kinds of pre-embedded magnets with rubber sleeves.
The production of precast concrete components requires various switches, stake holes and connecting or lifting sockets, as well as prefabricated linking or lifting sleeves. With Inserted Magnet fixing, it will not damage the platform and can ensure that the embedded parts will not slip, accurate positioning, firm fixing, easy operation and high efficiency. Meanwhile, this Inserted Magnet can be used repeatedly for a long time to achieve cost saving.
NdFeB Embedded Socket Fixing Magnet Dimension:
Part No.: QCM-D54
Threaded OD (mm): 18
D1 (mm): 54
Height(mm):10
QCM Insert Magnet Specifications：
 |
||||
|
Model |
D1(mm) |
H2(mm) |
Breakaway |
D3 |
|
D50*8 |
50 |
8 |
60 |
M10M12M14M16 |
|
D54*10 |
54 |
10 |
65 |
M18M20M24 |
|
D64*12 |
64 |
12 |
100 |
M16 |

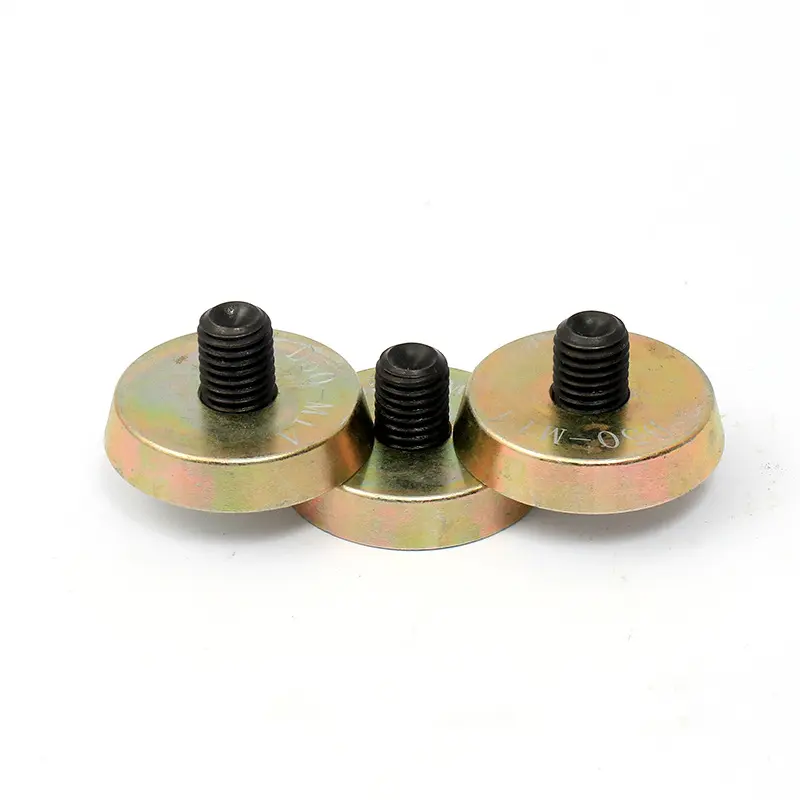

Application Pictures of Insert Magnets with External Thread:
QCM magnet precast concrete magnets production equipment
QCM magnet shutting magnet box pull force test equipment
Package of Fixing Magnets Insert Magnet
