powerful precast concrete magnets
Description
Developed for mounting wooden or iron side moldings, this series of precast magnet is also known as box magnets because of their box-like appearance. They produce a Pull Force much greater than the weight of the magnet itself, and the economical carbon steel housing protects the internal magnetic core. All bolts and nuts are made of Grade 12.9 high-strength alloy material or 304 stainless steel. They can be easily attached to external fixtures of various shapes to better secure the side molds.

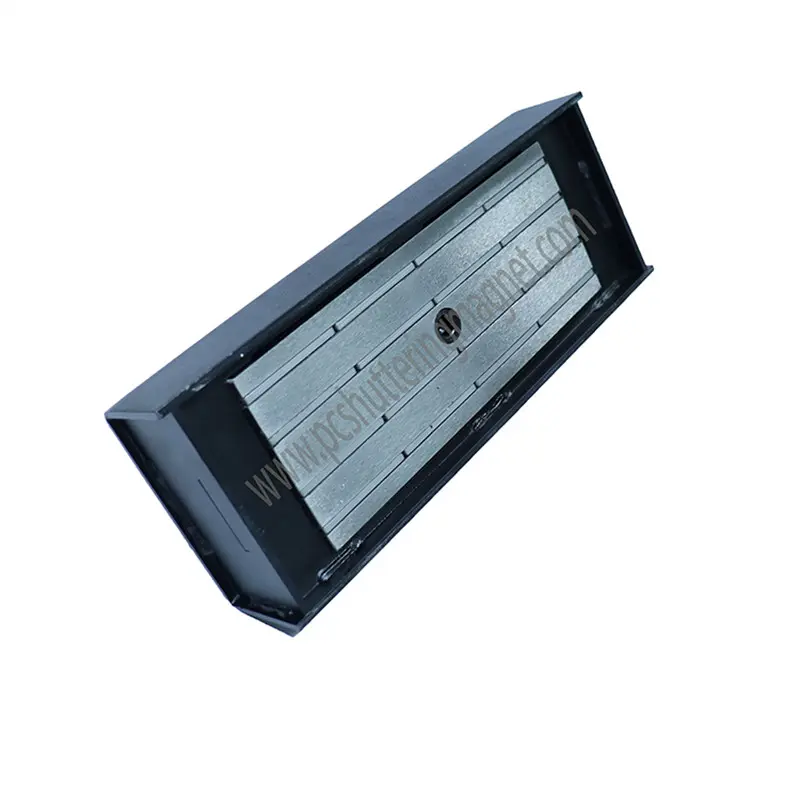

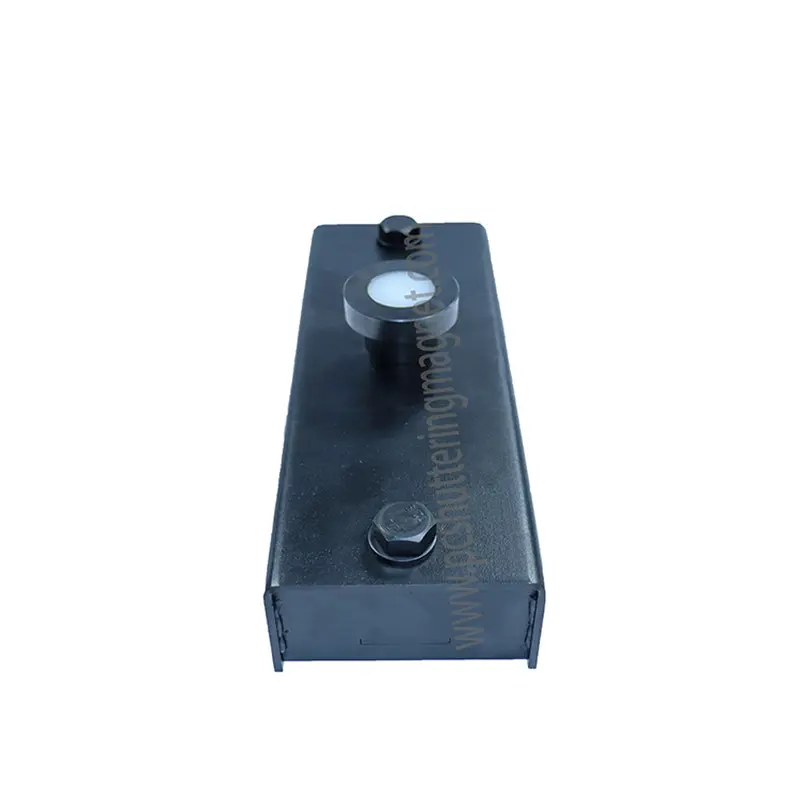

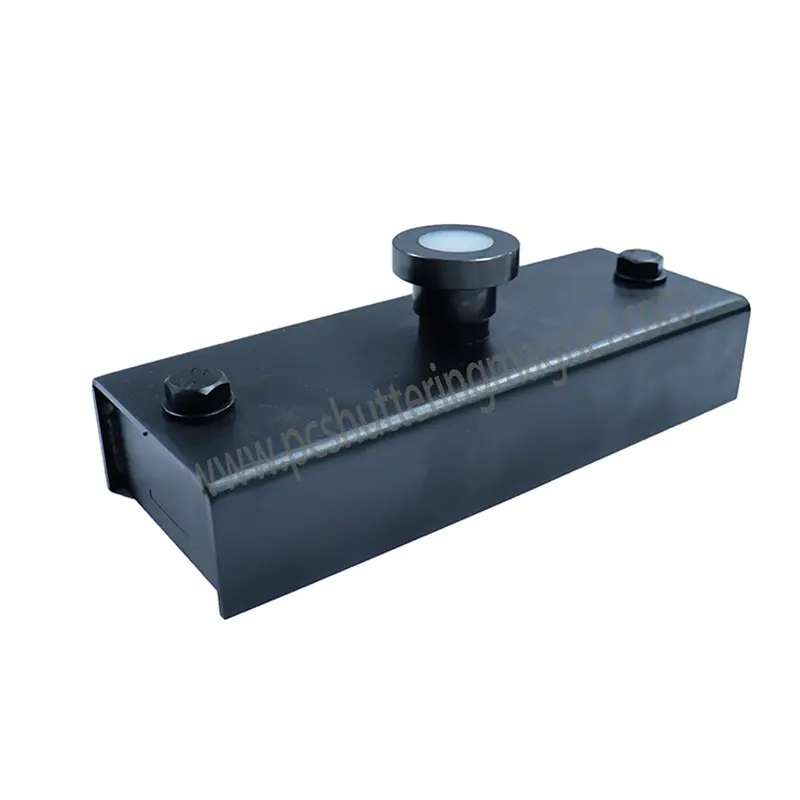

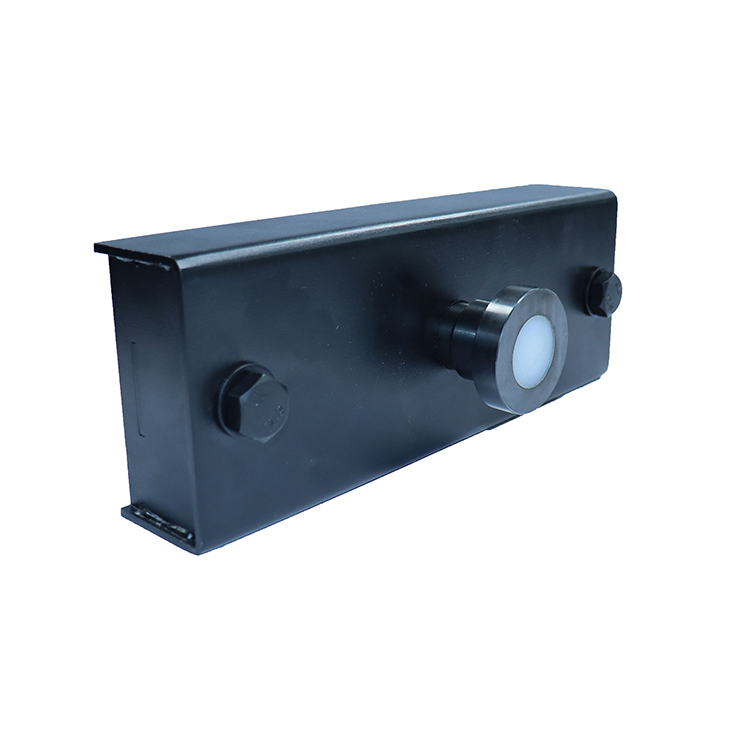

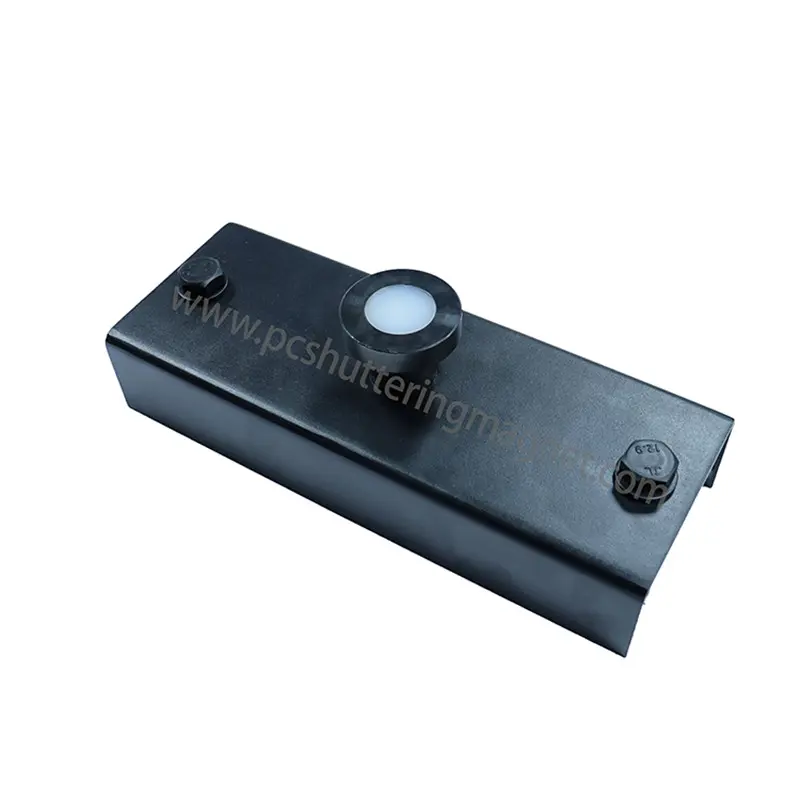

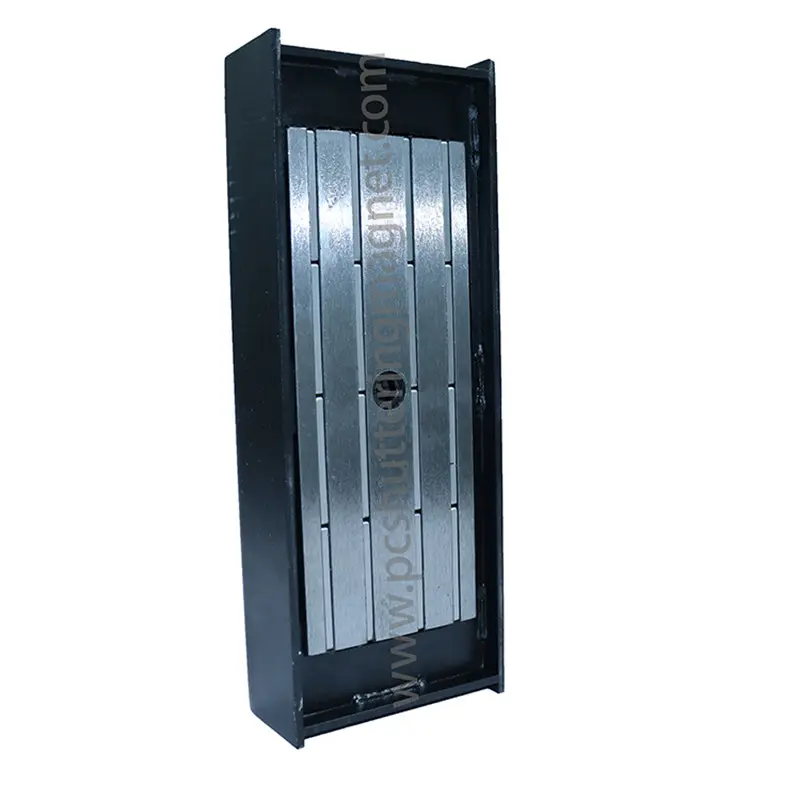

2400KG Tensile Carbon Steel Shell Shuttering Magnet: QCM-2400
Type: Carbon Steel
Composition: NdFeB
Application Temperature: Up to 80°C
Adhesion (KG): 2400KG

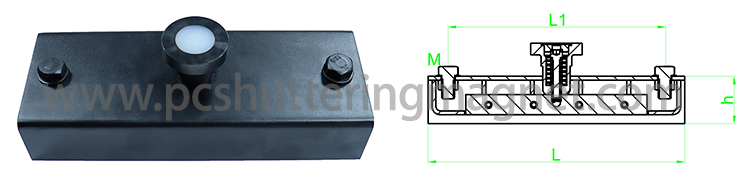

Dimensions (L*W*H, mm): 320x120x60mm
Application Areas: Precast Concrete Panels and Walls, Bridges and Infrastructure, Precast Columns, Beams, Stairs
It works when you configure the concrete formwork and is used to secure the side rails and blocks. The strong magnetic attraction can adsorb the steel plate and metal template when the switch button is pressed. Accurate positioning and consolidation of templates have been achieved, reducing errors during concrete pouring and avoiding rework and delays in the construction period. Shuttering boxes enable rapid assembly and disassembly of templates, significantly speeding up project progress by more than twice the usual time.
Concrete prefabricated components require consistent standards and product quality. The implementation of these standards relies on the proper operation of the pouring process and the construction of the mold platform in compliance with regulations. Shuttering systems serve as a bridge between operations and standards. With the support of this powerful tool, workers can more accurately align the fixing points, apply sufficient support to the side rails and baffles, and make concrete prefabrication production smoother.
We are a factory with years of experience in producing precast shuttering magnets. We are capable of developing and customizing products according to customer requirements. We offer competitive prices and fast delivery times. We plated NI-CU-NI coating on the surface of the magnet, which effectively protects the magnet and prolongs its service life.The shell is made of carbon steel and has excellent properties such as wear resistance, low temperature resistance, thermal expansion performance, and insulation performance. carbon steel is durable, scratch-resistant, rust-resistant, and break-resistant. If you have any specific requirements for the precast concrete magnet product, please feel free to contact us via email or phone.
2400 kg precast concrete magnet application scenario diagram
QCM magnet shutting magnet box pull force test equipment
Welcome to QCM Magnets, a company dedicated to innovation and quality. We have state-of-the-art manufacturing and inspection equipment to ensure that every product meets the highest standards. Our product line includes precast concrete magnetic boxes and related matching magnetic components (Magnetic Formwork, Insert magnets, Magnetic Chamfer, Adapters) to cater to the construction industry's requirements in the production of precast products. All our magnet products offer strong magnetism and reliable performance. Choose us for professionalism and trust.
