How to Edge Concrete Like a Pro: A Step-by-Step Guide with Magnetic Chamfer Strips

Concrete edges might seem like a small detail, but they make a huge difference in durability, safety, and aesthetics. Sharp 90-degree corners on fresh concrete are prone to chipping, cracking, or even causing injuries. That’s where chamfering comes in—a technique that creates a smooth, angled edge. And when it comes to achieving that perfect edge, magnetic chamfer strips are a game-changer. Let’s break down how to use them, their types, and why they’re better than traditional tools.

Why Chamfer Concrete Edges?

Chamfering is more than just a finishing touch. Here’s why it matters:

1. Prevents Damage: Angled edges resist chipping from weather, foot traffic, or machinery.
2. Improves Safety: Rounded edges reduce tripping hazards, especially on sidewalks or patios.
3. Boosts Appearance: Clean, professional edges elevate the look of driveways, countertops, or decorative concrete.
4. Simplifies Formwork Removal: Chamfered edges prevent concrete from sticking to molds, making cleanup easier.

Magnetic Chamfer Strips: Types and Features

Magnetic chamfer strips attach to steel forms using built-in magnets, creating precise edges as the concrete sets. Unlike plastic or PVC versions, they’re reusable and leave no residue. Here are the three main types from the guide:

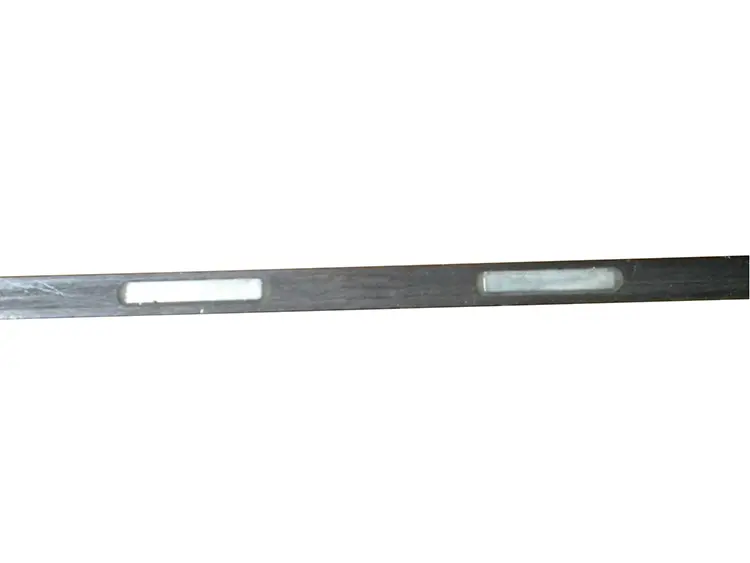

1. Magnetic Steel Chamfer Strips

• Material: Triangular-shaped steel strips with strong magnets.
• Best For: Heavy-duty projects like sidewalks, driveways, or industrial slabs.
• Benefits:
  • Adds structural strength to edges.
  • Creates subtle shadow lines for a polished look.
  • Easy installation—just press onto steel forms.

2. Magnetic Urethane Chamfer Strips

• Material: Flexible urethane with magnetic backing.
• Best For: Curved edges or small projects like ceramic tiles, garden pavers, or DIY crafts.
• • Bends easily around tight curves.
  • Lightweight and weather-resistant.Benefits:
  • No rust or corrosion.

3. PVC Chamfer Strips

• Material: Flexible PVC (non-magnetic).
• Best For: Large precast concrete pieces or projects where steel forms aren’t used.
• Benefits:
  • Rust-proof and durable in all weather.
  • Presses directly into wet concrete without adhesives.
  • Affordable for one-time use.

How to Chamfer Concrete with Magnetic Strips

Tools Needed: Steel forms, magnetic chamfer strips, level, trowel.

Step 1: Prep the Forms

• Use steel forms(magnets won’t stick to wood or plastic).
• Clean forms with a wire brush to remove rust or debris.

Step 2: Attach the Magnetic Strips

• Press the magnetic side of the strip firmly against the form’s edge.
• For curves: Use flexible urethane strips or small steel segments.
• Check alignment with a level—wonky strips lead to uneven edges!

Step 3: Pour and Finish the Concrete

• Pour concrete into the forms and vibrate gently to remove air bubbles.
• Smooth the surface with a trowel, avoiding the chamfer strip.

Step 4: Remove the Strips

• Let the concrete cure for 12–24 hours.
• Peel the strip away—no prying or hammering required!

Step 5: Post-Chamfering Tips

• Clean the Strips: Rinse steel or urethane strips with water and dry them to prevent rust.
• Store Properly: Keep strips flat in a dry place to avoid warping.
• Reuse for Future Projects: Magnetic strips can last years with proper care.

Magnetic Chamfer Strips vs. Other Tools

Let’s compare magnetic strips to traditional chamfering methods:

Why Magnetic Strips Win: They’re fast, reusable, and produce factory-quality edges without damaging forms.

Common Problems (and Fixes)

1.“The Strip Won’t Stick!”

○ Cause: Dirty or rusty forms weaken the magnet.

○ Fix: Scrub forms with a wire brush and wipe dry.

2.“My Chamfer Looks Wavy”

○ Cause: Strips weren’t pressed flat or aligned.

○ Fix: Use clamps to secure strips while pouring.

3.“Concrete Stuck to the Strip”

○ Cause: Forgot to apply form-release oil.

○ Fix: Spray a light coat of oil on the strip before pouring.

4.“Rust on Steel Strips”

○ Cause: Stored in damp conditions.

○ Fix: Coat strips with WD-40 or silicone spray after washing.

When to Use Each Type of Chamfer Strip

• Magnetic Steel: Driveways, sidewalks, industrial slabs.
• Magnetic Urethane: Curved garden paths, DIY crafts, tile edges.
• PVC Strips: One-time projects like DIY stepping stones or small repairs.

Fun Project Idea: DIY Chamfered Garden Stepping Stones

Put your skills to the test with this easy project:

1 Supplies:

○ Small steel form (e.g., cake pan or custom mold).

○ Magnetic urethane chamfer strip.

○ Quick-set concrete mix.

2 Steps:

○ Line the form’s edge with the urethane strip.

○ Mix and pour concrete; smooth the surface.

○ Remove the strip after 4 hours.

○ Paint or seal the stone for a personalized touch!

Final Thoughts

Chamfering concrete isn’t just for pros—anyone can master it with the right tools. Magnetic chamfer strips take the guesswork out of edging, whether you’re building a patio or crafting garden decor. Remember:

• Steel strips= Heavy-duty, straight edges.
• Urethane strips= Curves and creativity.
• Clean and prep= Perfect results every time.

Now go grab those strips and turn rough edges into sleek, professional finishes!
