Grout Connection Tube Magnet Conduit Locators

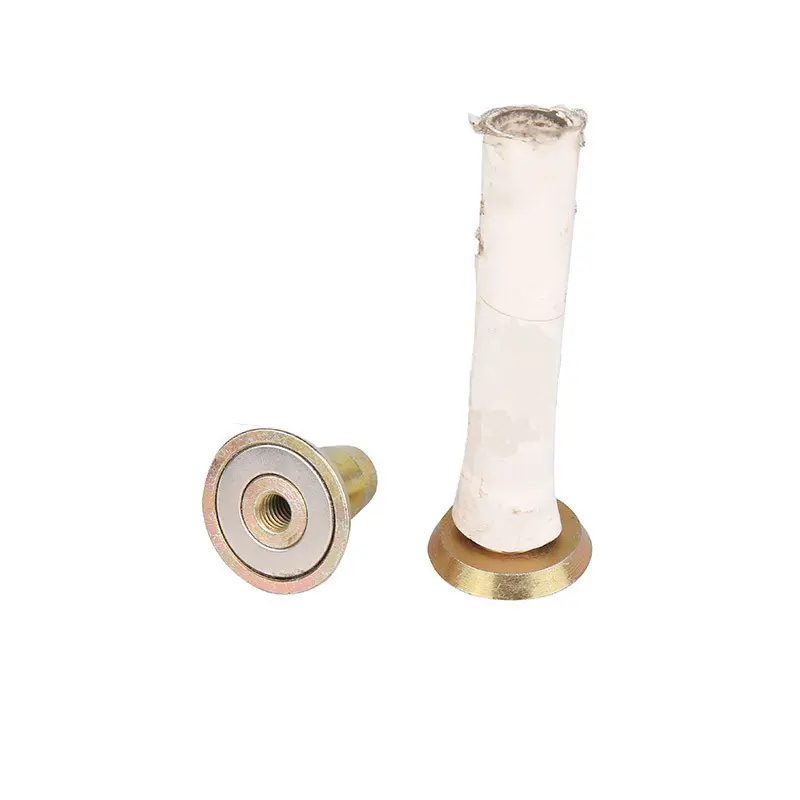

The Grout Connector Pipe Magnet is a steel retaining pin designed to be fitted to the end of a concrete grout connector pipe, securing the grout pipe to the side of the unit, creating a small recess with a built-in, powerful magnet that holds it securely in place on the steel formwork and prevents concrete from leaking into the void. Used for on-site filling and venting, little or no work is required after grouting. This design does not cause obstruction to the concrete surface.
QCM Magnet has a full set of high-precision laser cutting, bending and CNC lathe equipments, which can quickly customize various sizes of magnetic mounting products, the new D40-18.1 products are suitable for Φ20mm PVC water pipe; D40-23.1 products are suitable for Φ25mm PVC water pipe; D40-29.7 products are suitable for Φ32mm PVC water pipe. D40-23.1, for Φ25mm PVC water pipe; D40-29.7 product, for Φ32mm PVC water pipe.
| Product name | D40 Grout Connection Tube Magnet |
| Item No. | D40 |
| Coercivity | 868(KA/m) |
| Remaining magnetization | 1.2 (T) |
| Intrinsic Coercivity | 955 (KA/m) |
| Maximum magnetic energy product | 287（KJ/m3） |
| Material grade | N35 |
| Working temperature | 80(℃) |
| Brand | QCM |
| Specification | D40 |
| Suction power | 35kg |
| Surface treatment | Colorful zinc plating |
Application Pictures of Insert Magnets with External Thread:
QCM magnet precast concrete magnets production equipment
QCM magnet shutting magnet box pull force test equipment
Package of Fixing Magnets Insert Magnet
1. Products neatly stacked
2. Built-in foam around the product to prevent product collision
3. The outer packaging is usually a carton + waterproof bag
