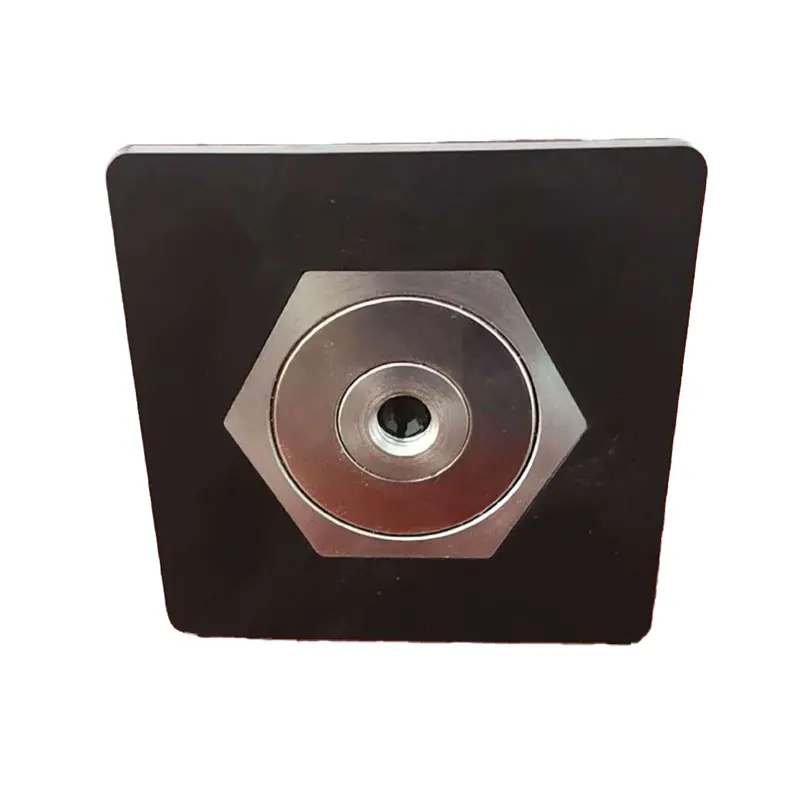

Electric Box Insert Magnet for Precast Concrete
Definition and Usage
The Electric Box Insert Magnet for Precast Concrete is a magnetic fastening device used in the production of precast concrete. It is primarily used to secure electrical boxes and other embedded components in precast concrete assemblies. The magnet ensures accurate positioning and fastening of electrical boxes and other embedded components during the concrete placement process, thereby improving construction efficiency and component quality.
 |
|||||
|
Model |
D(mm) |
L(mm) |
W(mm) |
H(mm) |
Maximum Pull Force(kg) |
|
D90*30 |
90 |
- |
- |
30 |
100 |
|
71*71*30 |
- |
71 |
71 |
30 |
100 |
Advantages and Features
1. Material and Structure: Usually consists of a high performance NdFeB magnet, a steel housing and a threaded rod. The steel casing not only protects the magnet from external damage, but also concentrates the magnetic force to the contact surface, resulting in a higher attractive force.
2. Magnetic design: Reasonable magnetic circuit design and mature production process ensure high quality and durability.
3. Easy to operate: The insert magnet design makes the installation and removal of the electrical box easy and quick, ensuring high efficiency during construction.
4. Reusable: These magnets are reusable, cost-effective and easy to handle.
5. Safety: The use of magnetic fixtures reduces the need for manual clamping or tightening, reducing safety risks during construction.
6. environmental adaptability: the surface of the magnet is usually coated with anti-corrosion coating, able to work properly in environments up to 80 ℃.
Application Prospects
1. Precast Concrete Components: The Electric Box Insert Magnet is widely used to secure electrical boxes and other embedded components in the production of precast concrete wall panels, beams, columns and other structural components. It ensures accurate positioning of these components during the concrete placement process, thereby improving the quality and consistency of the assembly.
2. Building Electrical System: In the electrical system of a building, this magnet can be used to fix the wire troughs and conduits, avoiding leaving marks on the concrete surface and improving the neatness and aesthetics of the construction.
3. Green Building Model: With the shift of construction industry to green building model, precast concrete pouring has become an energy-saving, environmentally friendly and efficient way of construction.Electric Box Insert Magnet plays an important role in this process.
Application of Electric Box Insert Magnet for Precast Concrete
Precautions
1. Avoid high temperatures: High temperatures in excess of 80°C should be avoided when handling or storing as they may cause a weakening or complete loss of magnetism.
2. Handling safety: It is recommended to wear gloves to prevent pinching of hands during impact and to keep away from electronic equipment and unnecessary magnetic metals.
3. Avoid covering: Avoid covering the magnet surface while pouring concrete to maintain its magnetic properties.
Through these features and applications, Electric Box Insert Magnet for Precast Concrete shows a broad application and significant advantages in the precast concrete industry.
